SR08 UV Tube Flame Sensor for R2868 Replacement Evaluation

SR08 is a UV tube flame sensor with a published spectral response range of 185–260 nm. For projects evaluating alternatives to Hamamatsu R2868, check the operating circuit, tube dimensions, viewing arrangement and controller requirements before selecting a sample. A reference-model association identifies an evaluation target. It does not establish a direct replacement for a complete detector assembly or a particular flame-safety system.

R2868 Evaluation 185–260 nm External Driving Circuit Model-specific Datasheet
Send the original tube and controller model, circuit and mounting details for an engineering review.

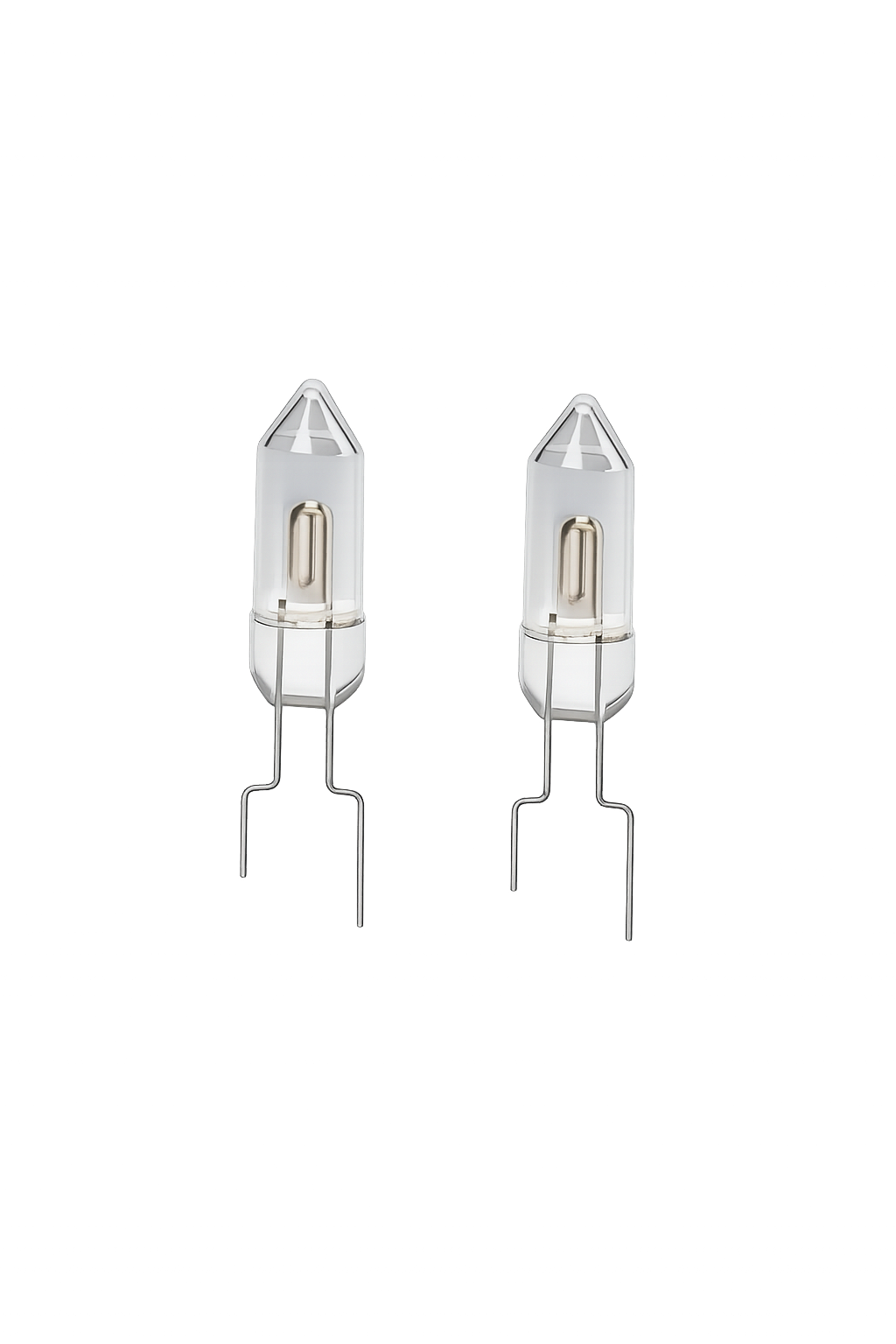

SR08 UV tube flame sensor for industrial flame detection
Reference for Evaluation
Hamamatsu R2868
Sensor Type
UV Tube Flame Sensor
UV Response
185–260 nm
Typical Use
Burners / Boilers / Safety Systems
Reference Model for Evaluation
Hamamatsu R2868
Sensor Type
UV Tube Flame Sensor (Solar-blind UV)
Typical Applications
Industrial Burners, Boilers, Combustion Safety Systems
Support
Engineering Review & OEM Supply Support

Key Features

  • Published spectral response: 185–260 nm
  • Model-specific working voltage and discharge parameters
  • Pulse output via the illustrated external driving circuit
  • Candidate for R2868 replacement evaluation after application review

Typical Applications

  • Industrial gas burners
  • Combustion monitoring systems
  • Boilers and furnaces
  • Industrial safety and flame supervision systems

Technical Overview

For R2868 replacement evaluation, review the tube specifications, external driving and quenching circuit, mounting, viewing arrangement and controller requirements. Model references do not establish interchangeability or approval for a particular flame-safety system.

Published SR08 Specifications

ModelSR08
Spectral response range185–260 nm
Power supply voltage (DC), working parameter325 ± 25 V
Average discharge current, working parameter0.3 mA
Quenching time, minimum1 ms
Discharge starting voltage (DC), maximum280 V at 25°C
Continuous discharge voltage (DC), typical240 V at 25°C
Signal path in the illustrated working circuitPulse output via an external driving circuit

Values are taken from the SR08 sheet currently available in this website's media library. Confirm the latest revision and the operating conditions for your project. The sheet lists 400 V as a maximum supply rating; this is not the recommended working voltage.

The pulse output shown in the sheet is obtained through the illustrated external circuit. A direct TTL signal, fixed output amplitude or universal controller compatibility from the bare tube is not specified.

R2868 Replacement Evaluation

Before reviewing a sample, provide:

  • The exact original tube or detector assembly and controller/amplifier model.
  • Supply voltage, operating circuit, quenching arrangement and current limits.
  • Mounting drawing, pin arrangement, optical viewing direction and installation conditions.
  • Required flame signal, response criteria and operating environment.
  • System-owner acceptance criteria and the planned application-validation procedure.

The supplied SR08 sheet identifies an association with R2868 but does not establish pin-to-pin or complete-system interchangeability. Approve a replacement only after the relevant electrical, mechanical and application review and target-system validation.

Application Review

For burner, boiler and furnace flame-monitoring projects, share the original sensor and controller model, circuit, mounting information and application requirements. Detector suitability depends on the complete optical, electrical and control-system arrangement.

R2868 System Review

For R2868 replacement evaluation, review the tube specifications, external driving and quenching circuit, mounting, viewing arrangement and controller requirements. Model references do not establish interchangeability or approval for a particular flame-safety system.

Before Sample Selection

The supplied SR08 sheet identifies an association with R2868 but does not establish pin-to-pin or complete-system interchangeability. Approve a replacement only after the relevant electrical, mechanical and application review and target-system validation.

FAQs

Is SR08 a direct replacement for R2868?
SR08 can be reviewed as a candidate for R2868 replacement evaluation. Confirm the applicable tube or assembly, dimensions, circuit, pin arrangement, controller requirements and system performance before approving a replacement.
What operating voltage is listed for SR08?
The available SR08 sheet lists a DC supply voltage of 325 ± 25 V under working parameters. Its 400 V maximum rating is a separate limit and should not be used as the recommended operating point.
Can SR08 use the SR1309 operating parameters?
Do not assume operating parameters are shared between models. Use the correct model-specific datasheet and review the complete driving circuit and application conditions.

Related Sartec Photoelectronics UV Flame Sensors

SR08 Application Validation

Confirm the optical, electrical and control-system arrangement. Approve a replacement only after engineering review and validation in the target system.

Technical Support

Request SR08 Replacement Evaluation

Send your original sensor model, controller or amplifier model, circuit or wiring diagram, mounting information and application requirements.
