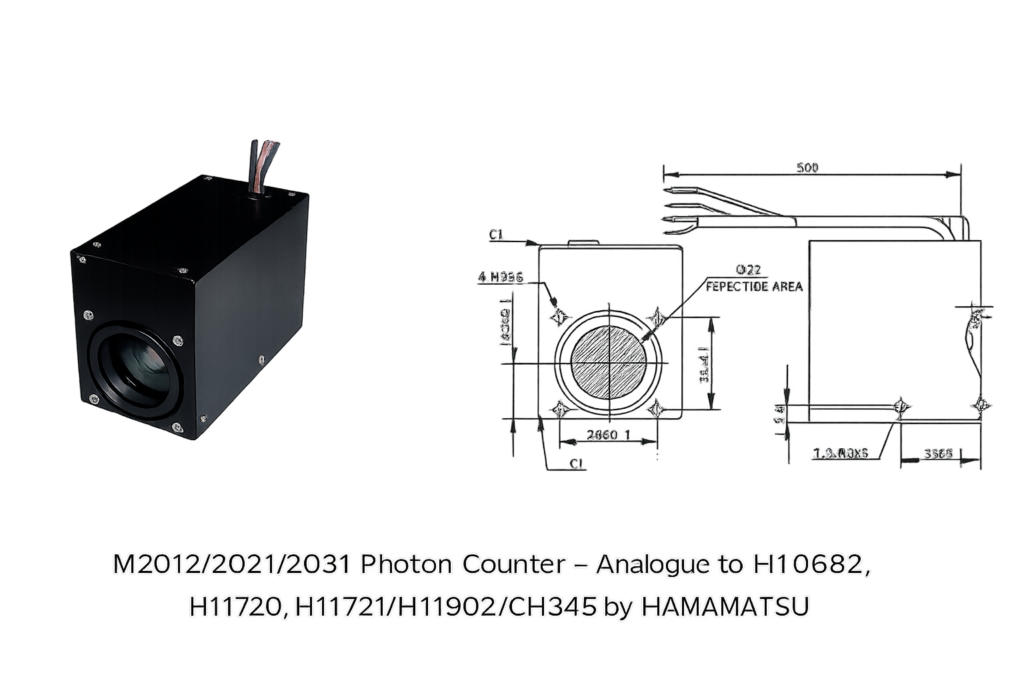

M2012 Photon Counting Detector and M2021/M2031 PMT Modules
Sartec Photoelectronics offers three documented PMT module configurations for low-light detection. M2012 provides a photon-counting pulse output, M2021 provides a voltage output, and M2031 provides a current output. Select the output architecture to match the receiving instrument.
Choose the correct output architecture
| Model | Output and electrical requirements |
|---|---|
| M2012 | Output: Photon-counting detector with positive TTL pulse output. Supply: +4.75 to +5.25 V. Spectral range: 290–650 nm. |
| M2021 | Output: PMT light detector with current-to-voltage amplification. Supply: Bipolar supply; positive and negative rail magnitudes 11.75–12.25 V. Spectral range: 290–650 nm. |
| M2031 | Output: PMT light detector with direct current output. Supply: +11.75 to +12.25 V. Spectral range: 290–650 nm. |
These values are taken from the PMT Manual V3.1, printed pages 35, 37 and 39. Confirm the latest model-specific document, wiring diagram and supplied configuration before integration.
M2012 photon-counting specifications
The manual lists the following values at a test temperature of 25°C. Use the complete table and footnotes when assessing the detector.
| Parameter | Published value and condition |
|---|---|
| Effective area | 22 mm diameter |
| Peak wavelength | 420 nm |
| Count sensitivity | 4.5 × 10^5 s^-1·pW^-1 at 400 nm |
| Maximum linear count rate before correction | 1.0 × 10^7 s^-1 |
| Count rate with correction | 4.0 × 10^7 s^-1 when used with the M4011 counting unit correction function |
| Dark count | Typical 100 s^-1; maximum 200 s^-1, tested after 30 minutes of light avoidance |
| Pulse-pair resolution | 17 ns |
| Output pulse amplitude | Typical 2.2 V; maximum 2.5 V, with a 50-ohm load |
| Recommended load | 50 ohms |
| Operating temperature | +5 to +40°C |
The corrected count-rate figure must not be presented as an unconditional standalone M2012 count rate. M2021 and M2031 are different output configurations; this photon-counting table does not apply to them.
M2021 and M2031 integration
M2021 includes current-to-voltage amplification. M2031 provides a current output. Review the receiving circuit, gain control, bandwidth, load, power rails and connector assignments using the separate model pages in the manual. Do not connect either configuration using the M2012 pulse-output assumptions.
Industrial and Research Applications
Industrial Measurement Systems: Suitable for environments requiring high sensitivity and precision, such as factory automation, process monitoring, and instrumentation.
Medical Imaging: Ideal for imaging systems used in hospitals or diagnostic labs, where high accuracy and reliability in low-light performance are critical for detecting and analyzing medical conditions.
Spectroscopy: Excellent for scientific research, environmental monitoring, and analytical applications that require precise light signal detection and measurement.
FAQ – M2012, M2021 and M2031 PMT Modules
Can these PMT modules replace H10682/H11720/H11721/H11902/CH345 models?
Which PMT module output should I choose?
How should compatibility with an existing instrument be evaluated?
Can one gain specification be applied to all three models?
How do I select the right model for my application?
