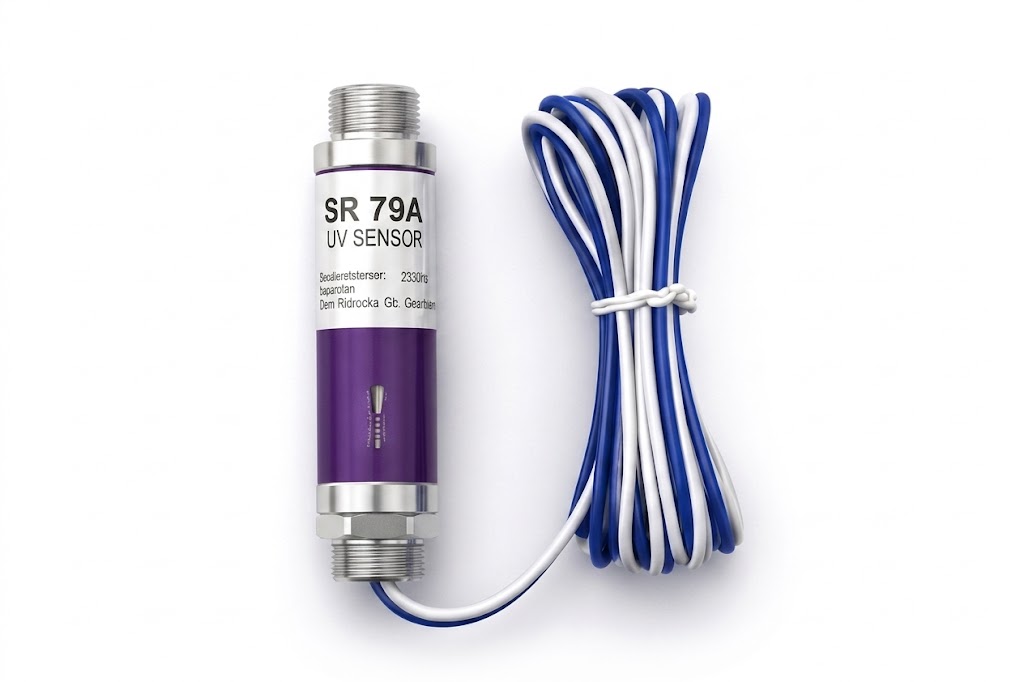

SR79A UV Flame Detector
The Sartec catalog lists SR79A as a candidate for Honeywell C7027 detector assembly replacement evaluation. Confirm the complete original detector and control system before selection.
Key Features
- UV detection for gas and oil flame supervision
- Detector-level controller and amplifier review
- Mounting, wiring and site-condition comparison
Typical Applications
- Industrial burners & boilers
- Furnaces / kilns
- Incinerators / thermal systems
- Burner Management Systems (BMS)
- Flame safety monitoring and combustion control

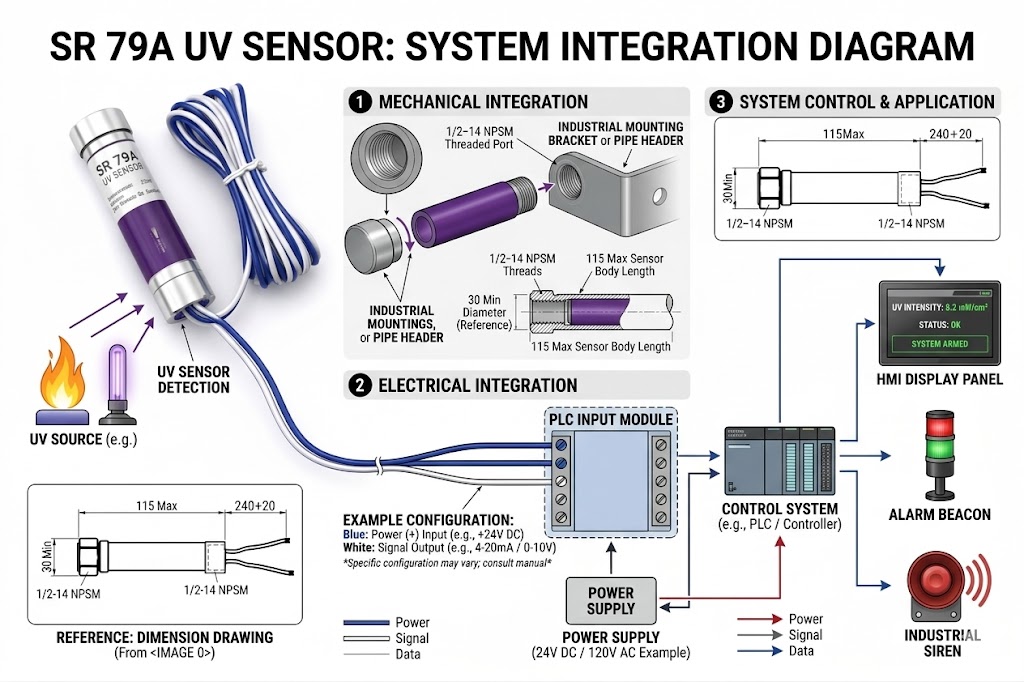

System Overview
Identify the exact controller, amplifier, wiring and required flame signal. The illustration is a general overview; compare the model-specific drawing and interface information before integration.

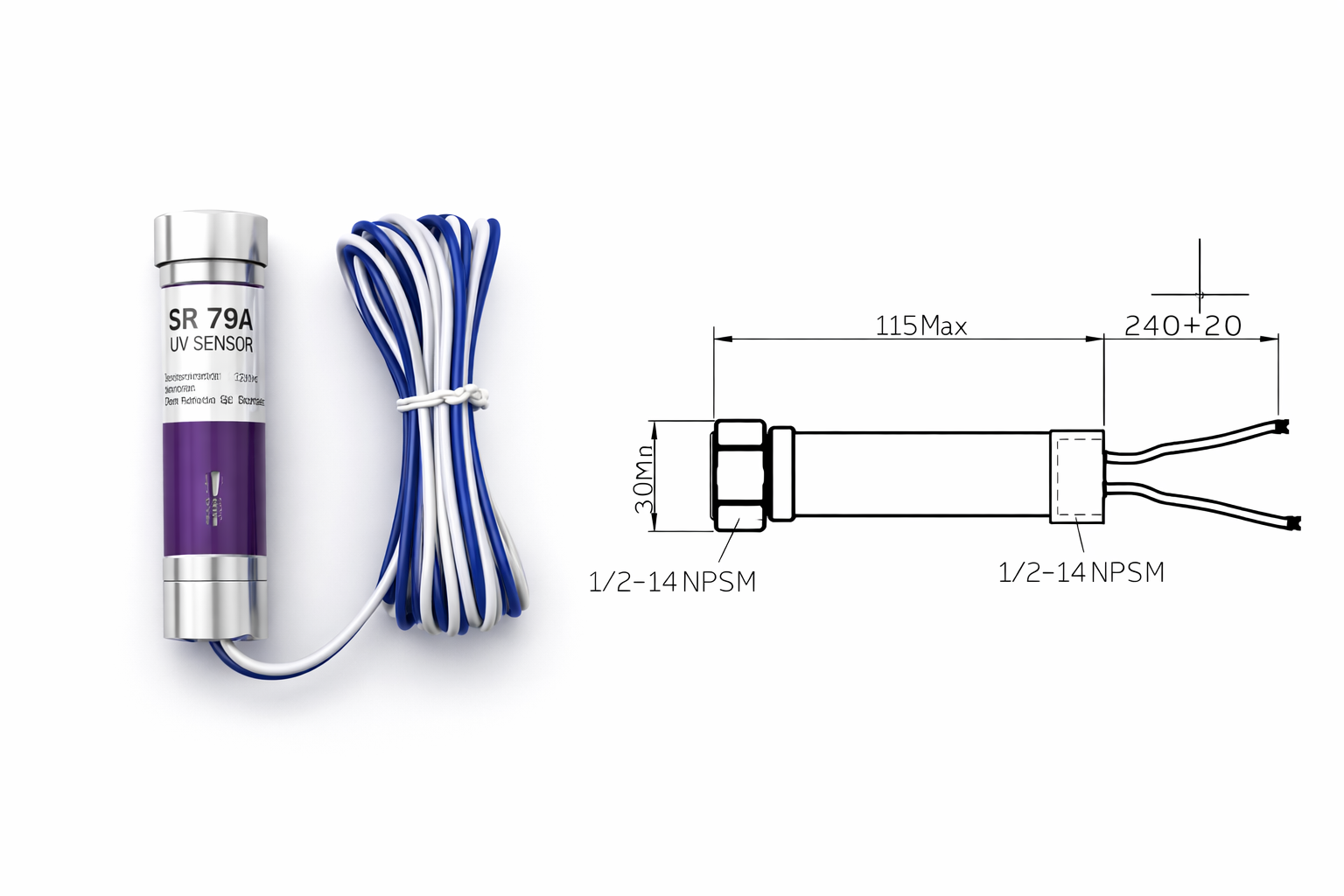

Product Overview & Dimensions
Honeywell C7027 Assembly Evaluation
The Sartec catalog presents SR79A as a detector assembly evaluation option. For internal phototube work, use the separate SR0708 component review.
Honeywell C7027A service data specifies replacement of the complete detector when its internal UV tube requires replacement. Review the original detector suffix and applicable operating procedures. Honeywell product data.
Specifications
- Catalog operating temperature: −18 to +102 °C
- Catalog maximum pressure: 5 psi
- Catalog mounting: 1/2-14 NPSM internal thread
FAQs
Can SR79A be evaluated for a C7027A application?
The Sartec catalog lists SR79A for C7027 replacement evaluation. Confirm the complete original model, control system and installation before selecting an assembly.
How does SR79A selection differ from SR0708 selection?
SR79A review concerns a detector assembly. SR0708 review concerns a UV phototube component and requires component-level data.
What documents are needed for an assembly review?
Send the detector label and suffix, controller and amplifier models, wiring, mounting drawing, sightline and operating conditions.
What should be verified before commissioning?
Qualified personnel should verify the selected assembly, flame signal and system safety functions under the equipment manufacturer procedures.
Related Categories
Get a Quote / Request Model Confirmation
Send the original C7027 detector label, controller and amplifier models, wiring and mounting details for an assembly evaluation.
SR 79A UV Flame Detector Engineering Review
Concise selection notes for engineers, buyers, and maintenance teams before sampling or replacement review.
The SR 79A UV Flame Detector page supports engineers selecting industrial UV flame detection equipment for burner safety, flame monitoring, replacement projects, and OEM integration.
For SR 79A UV Flame Detector, review detector type, viewing angle, electrical interface, response time, amplifier or controller compatibility, wiring, mounting position, ambient temperature, and the validation requirements for a replacement project.
Related resources include UV flame detectors, CHECK LIGHT UV flame sensors, and engineering support.
UV flame detector selection resources: compare UV flame detectors, review industrial flame detection applications, access datasheets and technical documents, or request an engineering review.
