NDIR Gas Detection Modules for HVAC and Industrial Integration

NDIR Modules
NDIR Gas Detection Integration for HVAC and Industrial Applications

Sartec Photoelectronics supports NDIR gas detection module selection for industrial gas analysis, environmental monitoring and OEM instrument projects. The appropriate configuration depends on the target gas, concentration range, sampling conditions and electrical interface.

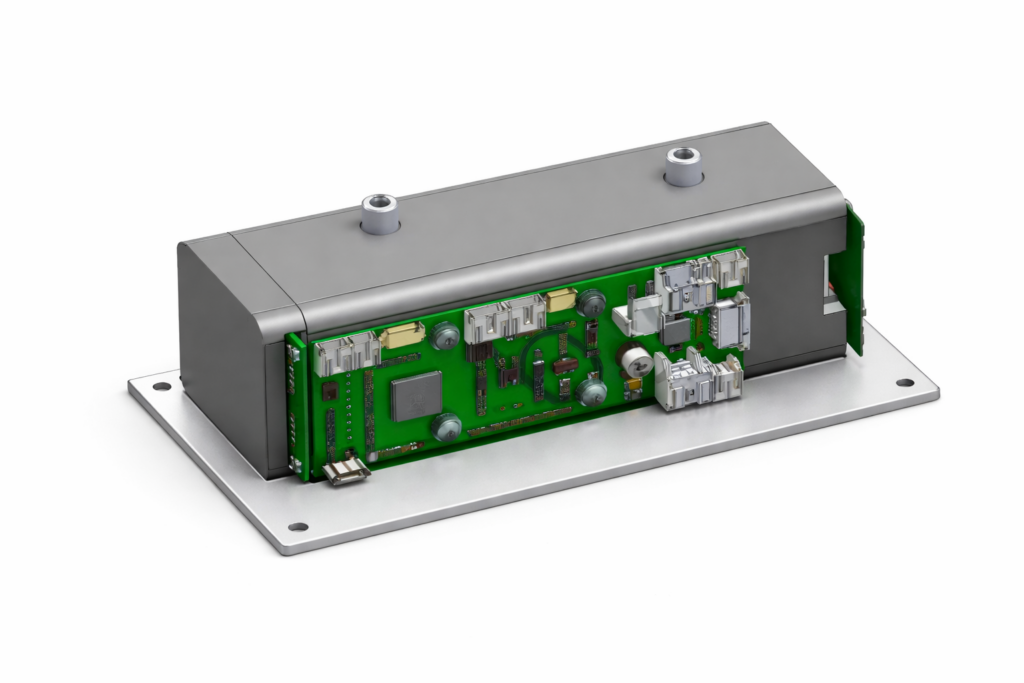

NDIR gas detection module for industrial gas sensing integration

Applications

NDIR Modules are used for a wide range of applications, including:

  • HVAC Systems: Used to monitor and regulate indoor air quality, specifically **CO2** levels.
  • Industrial Applications: Monitor gas emissions and environmental conditions in factories, plants, and warehouses.
  • Indoor Air Quality: Used in residential and commercial spaces to ensure clean and healthy air.
  • Energy Efficiency: Helps optimize energy use by controlling ventilation based on gas concentration levels.

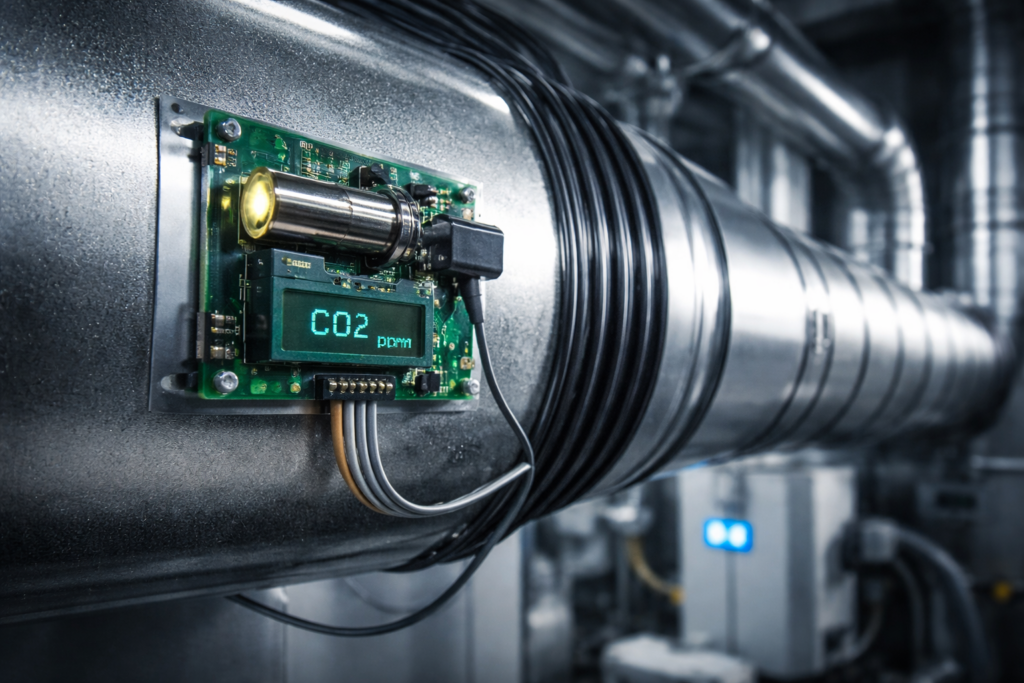

NDIR (Non-Dispersive Infrared) Gas Detection Module in an industrial environment for monitoring air quality and emissions

Electrical and performance specifications

Request the model-specific datasheet before selecting a power supply, designing an interface or confirming measurement performance. Supply voltage, current consumption, output signal, measurement range and response time must be confirmed for the selected module configuration.

The engineering review should distinguish the module’s operating current from the current capacity required of its external power supply. Voltage is specified in volts; power consumption must be specified separately in watts or by the applicable voltage and current conditions.

Select a module by its measurement configuration

NDIR modules measure infrared absorption. Gas species, optical filter, path length and calibration determine the measurement configuration. A specification for one gas or range should not be applied to another configuration.

For your enquiry, please provide:

  • Target gas and expected background gases.
  • Required measurement range, accuracy and detection limit.
  • Sample pressure, temperature, humidity and flow conditions.
  • Response-time requirement and sampling arrangement.
  • Required supply voltage, available power and output interface.
  • Instrument space, annual quantity and qualification requirements.

RFQ Information for Gas Module Review

For gas module selection, provide the target gas, measurement range, optical path or sampling method, response-time requirement, output interface, installation environment, and calibration expectations. Sartec Photoelectronics can review the application requirements before recommending a suitable module configuration.

Integration review

Review sample conditioning, condensation prevention, flow direction, pressure and cross-gas interference together with the calibration method. Confirm the selected module’s connector assignment and communication documentation before connecting it to the instrument.

Technical Support

We provide comprehensive technical support to ensure that your gas detection module matches the intended operating conditions. Our services include:
•Installation guidance and setup assistance.
•Troubleshooting for defined performance requirements.
•Ongoing support for maintenance, upgrades, and calibration.

Product Line Link

FAQ – NDIR Modules

What gases can NDIR Modules detect?

Send the target gas, background composition and required range for a configuration review. Suitability must be confirmed for the selected gas and application.

What is the typical measurement range of NDIR Modules?

The range depends on the target gas, optical path and calibration. Request the datasheet for the exact module configuration.

How fast is the response time of NDIR Modules?

Confirm the selected configuration’s T90 and the sampling conditions used to specify it.

Can NDIR Modules be integrated into existing systems?

Confirm the selected module’s output signal, communication protocol, connector assignment and receiving circuit before integration.

What is the power requirement for NDIR Modules?

Supply requirements are configuration-specific. Request the exact module datasheet and confirm supply limits before applying power.



Get a Quote / Request Model Confirmation

To receive an accurate quote or to request model confirmation for your specific application, please provide us with the following information:

  • Measurement Range: Please specify the required measurement range for your gas detection module. This helps us determine a suitable module based on your concentration needs.
  • Background Gases: Indicate any background gases that might be present in your environment. This ensures that the module is calibrated to account for interference from other gases.
  • Accuracy Requirements: Let us know the level of accuracy needed for your application. Different modules offer varying degrees of precision based on your measurement requirements.
  • Environmental Conditions: Provide details about the environment where the module will be used (e.g., temperature range, humidity, pressure, indoor/outdoor settings). This will help us recommend a module that performs optimally under those conditions.

Once we receive these details, our engineering team will review your requirements and recommend the most suitable model, ensuring it meets your detection and operational needs.

How to Get Started:

Simply fill out the contact form below or email us directly with the information listed above. Our team will get back to you with a tailored quote or product recommendation.

NDIR gas detection module engineering review notes

NDIR module selection should be based on target gas, optical filter, path length, measurement range, temperature influence, and the electrical interface needed by the final instrument.

What information should be prepared before RFQ?

  • Target gases such as CO2, CO, CH4 or hydrocarbons
  • Required ppm or percent range and response time
  • Temperature, humidity and cross-gas influence
  • Power supply, output signal and calibration plan

Can the module be selected by gas name alone?

No. The same gas can require different optical path, range, response time, sampling and output-interface choices. Sartec Photoelectronics reviews the measurement conditions before suggesting a suitable configuration.

What does the integration review focus on?

The review focuses on measurement method, operating environment, calibration plan, output interface, mechanical constraints and project documentation requirements.
